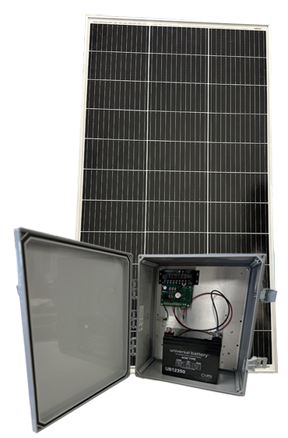

SPS-9 Solar Power Supply
The SPS-9 Solar Power Supply provides a power source remote telemetry when a 120VAC or 12VDC power supply is not be available or when power by a renewable power source is desirable. The SPS-9 Solar Power Supply is a turn-key solution and includes everything you need to implement a solar-power supply:
- One 160 Watt Panel
- Solar Panel Mounting Bracket
- Charge Controller
- Interface Circuitry
- 150Ah Battery
- NEMA 4X Enclosure 24” x 20” x 8
- Internal Chassis and Mounting Hardware
A full battery charge results in approximately 12 days of “hold up” for a 500mA load with no additional sunlight. All components, except the solar panel, mount inside a 24” X 20” X 8” NEMA 4X high-impact ABS enclosure providing a rain-tight and dust-tight environment, pre-wired for a truly quick and convenient implementation. Installation is quick and easy. Simply mount the enclosure and solar panel on the supplied bracket. Make the connections of the solar panel and load to the Interface Circuit Board. Note: Battery weight may require alternate mounting method.
Other Models: SPS-9-5 & SPS-9-15
Specifications
| Electrical | |
|---|---|
| Power Input: | One 160 Watt Solar Panel |
| Output Voltage: | 12 VDC |
| Charge Current: | 500 mA Max |
| Battery Capacity: | 150 Amp-hour |
| Battery Discharge Rate: | 100 mA |
| Battery Recharge Time: | Approximately 12 hours with Load off, 18 hours with Load on |
| Mechanical | |
|---|---|
| Mounting: | Any position for enclosure; Properly oriented for solar panel |
| Enclosure Material and Rating: | Fiberglass NEMA 4X |
| Enclosure Size: | 24" wide, 20" high, 8" deep |
| Weight: | 125 pounds |
| Temperature | |
|---|---|
| Temperature Range: | -38º C to +70º C, -38.4º F to +158º F |
| Humidity: | 0 to 98% non-condensing |
Options: |
|
All specifications are subject to change without notice.
